Product Overview

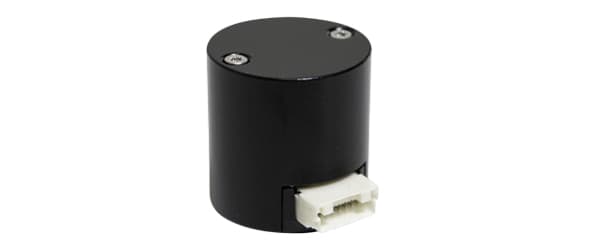

The Posital Miniature Kit Encoder features an extremely compact 22mm external diameter with hub shaft options of 2mm, 3mm, or 4mm. Supporting BiSS-C, BiSS Line, and SSI interfaces with resolution up to 33 bits, these space-saving encoders are ideal for applications with severe space constraints while maintaining high-precision position feedback capabilities.
Category
Sensors & Encoders
Brand
Posital
Key Features
- Ultra-compact 22mm external diameter
- Hub shaft options: 2mm, 3mm, 4mm
- BiSS-C, BiSS Line, and SSI interfaces
- Resolution up to 33 bits
- Space-saving design
- Compatible with E5 and HEDS-5500 footprints
Typical Applications
Miniature motors
Micro-robotics
Medical devices
Optical equipment
Precision instruments
Camera systems
Technical Specifications
External Diameter
22mm
Hub Shaft Options
Ø 2mm, 3mm, 4mm
Interfaces
BiSS-C, BiSS Line, SSI
Resolution
Up to 33 bits
Footprint
Compatible with E5 and HEDS-5500
Design
Ultra-compact construction
